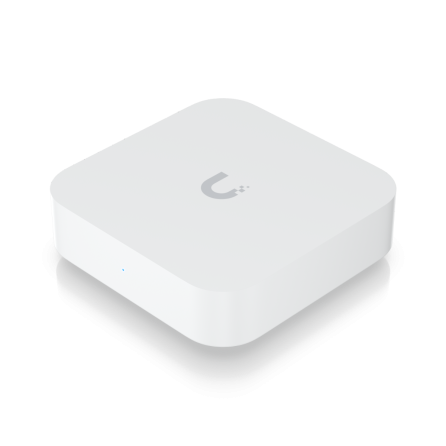

Ubiquiti UXG-Lite Gateway Lite

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.

Mechanical

• Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2")

• Weight: 320 g (11.3 oz)

• Enclosure material: Polycarbonate

Hardware

• Processor Dual-core ARM® Cortex®-A53 at 1 GHz

• Memory information 1 GB DDR3L

• Management interface: Ethernet / Bluetooth 5.1

• Networking interface: LAN: (1) GbE RJ45 port / WAN: (1) GbE RJ45 port

• Power method: USB type C (5V/3A)

• Supported voltage range: 100–240V

• Max. power consumption: 3.83W

• Operating temperature: -10 to 40° C (14 to 104° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

Gateway Features

• Performance

WiFi QoS with UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

• Next-generation security Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

• Advanced networking License-free SD-WAN*

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport* and Identity Enterprise VPN**

Policy-based WAN and VPN routing

DHCP relay

Customizable DHCP server

IPv6 ISP support
