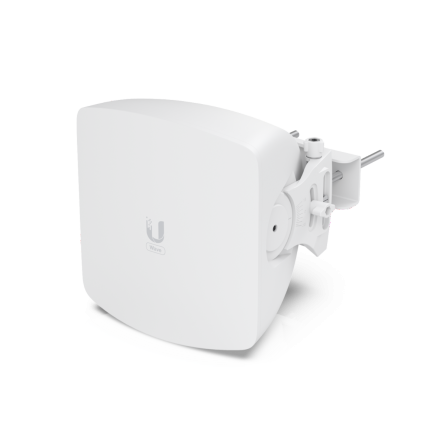

Ubiquiti Wave-AP-US PtMP / AP 60 GHz. (1) 2.5 GbE and (1) 10G SFP+ WAN Ports GPS & Bluetooth

60 GHz PtMP access point powered by Wave Technology.

Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)

30° sector coverage

5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)

(1) 2.5 GbE and (1) 10G SFP+ WAN ports

24* client capacity:

* Wave Pro (8 km link range)

* Wave Long-Range (8 km link range)

* Wave Nano (5 km link range)

* Wave Pico (1.3 km link range)

Integrated GPS & Bluetooth

Specifications:

• Dimensions 212 x 205 x 187 mm (8.3 x 8.1 x 7.4")

• Weight 2.3 kg (5.1 lb)

• Enclosure material Aluminum alloy, UV stabilized polycarbonate

• Pole mount diameter 25 to 76 mm (1 to 3") on pipe outer diameter

• Wind loading 98 N at 200 km/h (22 lbf at 125 mph)

• Weatherproofing IPX6

Hardware

• Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz

• Memory: DDR3L 512 MB

• Networking interface: (1) 2.5GbE RJ45 port (100/1000/2500)* / (1) 10G SFP+ port (1/10)

* Active only when SFP+ port is down.

• Max. power consumption: 24W

• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

• Power supply: 48V DC, 0.65A 2.5GbE PoE adapter (Included)

• Supported voltage range: 44–54V DC / 22–27V DC

• GPS: Yes

• Button: Factory reset

• LEDs: Power, Ethernet, GPS

• Ambient operating temperature: -40 to 60° C (-40 to 140° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE
