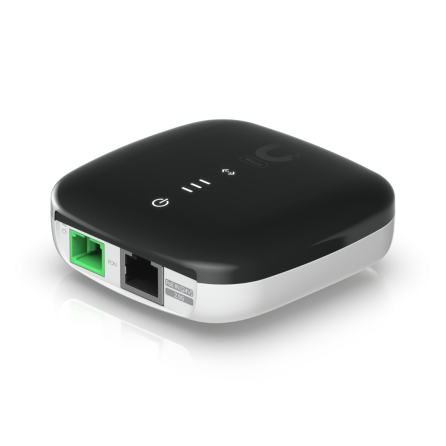

Ubiquiti Wave-Fiber-ONU GPON 2.5 GbE Port up to 20 Km.

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Specifications:

• Dimensions: 76.5 x 76.5 x 26.4 mm (3 x 3 x 1")

• Weight: 78 g (2.8 oz)

• Enclosure material: Polycarbonate

Hardware

• Networking interface: (1) SC/APC, ITU-G.984 GPON WAN port(1) 1/2.5 GbE RJ45 LAN port

• Management interface: Ethernet in-band / PON

• Power method: PoE, 0.3A

• Power supply: 24V passive PoE 2-pair (4, 5+; 7, 8-)

• Supported voltage range: 20–28V DC

• Max. power consumption: 5W

• Total non-blocking line rate: Downstream: 2.488 Gbps

                                                              Upstream: 1.244 Gbps

• Normal range of optical module: TX 1.5 to 5 dBm

                                                                     RX: -8 to -28 dBm

• Mounting    Desktop, wall

• Button    (1) Factory reset

• Ambient operating temperature    -15 to 45° C (5 to 113° F)

• Ambient operating humidity    10 to 90% noncondensing

• Certifications    FCC, IC, CE

Software

• Mode    ONU/ONT layer 2/3 Ethernet switch

• Services    Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

• Utilities    Dashboard, monitoring, alarms, and logs

• Security    GEM Port Encryption

• Other    Remote reset, remote reboot, remote firmware upgrade, VLAN support

Fiber

• Operating wavelength: TX 1310 nm

                                                     RX 1490 nm

• Line code: Scrambled NRZ

• Optical interface nominal bit rate: Downstream 2488.32 Mbit/s

                                                                        Upstream 1244.16 Mbit/s

• Physical reach    20 km
