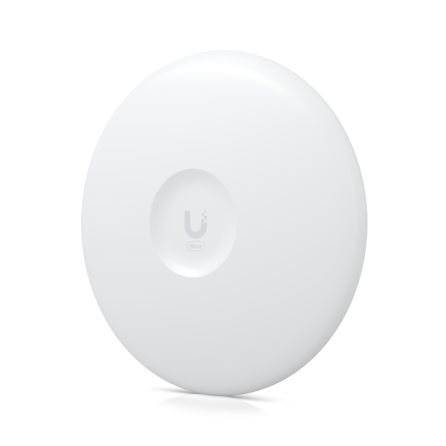

Ubiquiti Wave-Pro-US PtP / PtMP 60 GHz (2) 2.5 GbE (1) 10G SFP+ Ports

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

Max. link range:

* PtP: Up to 15 km

* PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)

5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)

(2) 2.5 GbE and (1) 10G SFP+ ports

Ergonomic transportation handle

Precision alignment mount

Integrated GPS & Bluetooth

Specifications:

• Dimensions Ø424.4 x 166.2 mm (Ø16.7 x 6.5")

• Weight Without mount: 2.8 kg (6.2 lb)

• With mount: 4 kg (8.8 lb)

• Enclosure material Aluminum alloy, UV stabilized plastic

• Mount material Stainless steel

• Pole mount diameter 25 to 76.2 mm (1 to 3") on pipe outer diameter

• Wind loading 369 N at 200 km/h (83 lbf at 125 mph)

• Weatherproofing IPX6

Hardware

• Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz

• Memory: DDR3L 512 MB

• Networking interface: (2) 2.5 GbE RJ45 ports / (1) 10G SFP+ port

• Max. power consumption: 26W

• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

• Power supply: 48V DC, 0.65A, 2.5 GbE PoE adapter (Included)

• Supported voltage range: 44–54V DC / 22–27V DC

• GPS: Yes

• Button: Factory reset

• LEDs: Power, (2) Ethernet, SFP+ , GPS, link

• Ambient operating temperature: -40 to 60° C (-40 to 140° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE

Software

• Operating mode: PtP, PtMP station

• Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology

• Services: UISP, ping watchdog, NTP client, SNMP

• Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*

*FW version 3.3.0 and later.

• Network Bridge/Router* mode

*Router is available in PtMP station mode only.

• Application requirements: UISP: Version 2.3.0 and later

System

• Total throughput: 5.4 Gbps (2.7 Gbps duplex)

• Max. range: PtP: Up to 15 km

• PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

• Encryption: WPA2-PSK (AES)

RF

• Operating frequency*: 57 to 71 GHz

*Depends on regulatory region.

• Channel bandwidth: 2160, 1080, 540* MHz

*FW version 3.3.0 and later.

• Operating channels*: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz

*Depends on regulatory region.

• Modulation; 16QAM, QPSK

• Antenna gain: 46 dBi

• Polarization: Vertically linear

• Beamwidth: Azimuth: 3 dB 1.3°

• Elevation: 3 dB 1.3°
