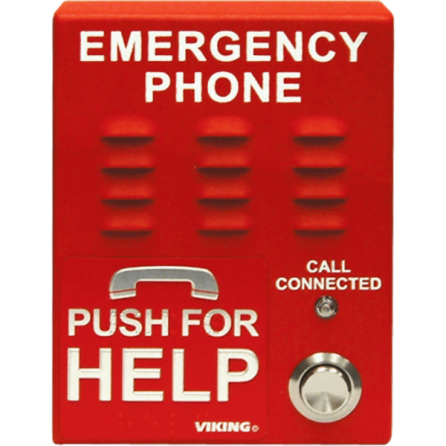

Viking Electronics E-1600A-EWP Emergency Phones Red with Built-In Voice Announcer

The E-1600A-EWP ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port. The E-1600A-EWP red emergeny phone meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch-tone phone. It can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The E-1600A-EWP can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600A-EWP is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment.

The E-1600A-EWP red emergency phone is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming. For more information, see DOD 859.

• Automatic Noise Canceling (ANC) feature for clear audio in noisy environments

• Meets the latest ASME A17.1 code when used with an LV-1K Line Verification Panel, see DOD 246

• Meets ADA requirements for Emergency Phones:

           Automatically lights the “Call Connected” LED

           Transmits a unique location ID code or voice announcement

           Grade 2 Braille label for the visually impaired

• Non-volatile digital voice announcer with 16 seconds of voice memory

• Advanced call progress detection

• Handsfree operation

• Phone line powered

• Non-volatile memory, no batteries required

• Dials up to 5 emergency numbers

• Cycles through backup phone numbers on busy or ring-no-answer

• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command

• Programmable to auto-answer on incoming calls

• Remotely programmable

• Central Station Monitoring capability (dials 2 numbers)

• Extended temperature range: -15°F to 130°F (-26°C to 54°C)

• Enhanced Weather Protection (EWP), designed to meet IP66 Ingress Protection Rating, see DOD 859

Specifications:

• Power    Telephone line powered (24VDC / 20mA minimum)

• Dimensions    5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)

• Operating Temperature    -15°F to 130°F (-26°C to 54°C)

• Humidity    Up to 100%

• Shipping Weight    2.5 lbs (1.13 kg)

• Material    16 gauge steel with textured red powder paint

• Mounting    Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes, recess mount in elevator phone boxes

• Connections    (2) Gel-filled butt connectors
