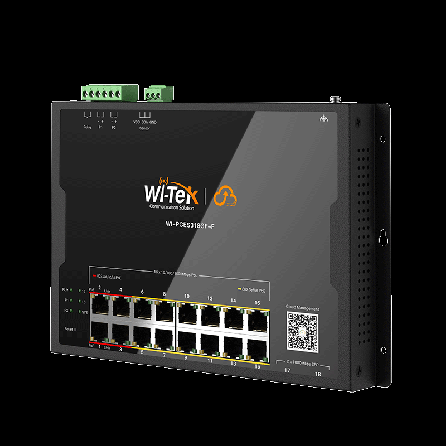

Wi-Tek WI-PCES318GF-F Switch (16) GbE RJ45 PoE (2) SFP Port Flat Cloud

The Wi–Tek Cloud Hardened Flat–type Easy Smart Switch offers 16 1000Mbps PoE ports with 4 ports up to 90W of PoE power, providing flexible and high-performance full–gigabit access and uplink ports.
Professional design provides a flexible, easy–to–use, and reliable industrial network solution. The switch provides simple, safe, and easy–to–use local WEB and remote management methods, supports smart deployment, abnormal alarm, ONVIF automatic identification of network cameras, etc. Wi–Tek Cloud hardened Flat–type Easy Smart Switch is the best choice for industrial network solutions and projects of harsh application scenarios such as factory and park.

Support Wi–Tek Cloud Management
ONVIF cameras and Wi–Tek cloud management devices can be remotely managed through the Wi–Tek cloud platform/mobile APP, making CCTV network projects truly intelligent and easy to maintain. You can easily access and manage your cameras from your phone or computer anytime, anywhere.

–30~65℃ Operating Temperature
-30~65℃ working temperature design, makes it meet the requirement of harsh application environment.

Fusion of Temperature Sensor and Cloud
The temperature sensor can sense the temperature of the project site in real time and upload it to the cloud platform, which you can monitor remotely in real time. The remote alarm function can effectively prevent risks, such as device faults caused by overtemperature.

Intelligent Operation and Maintenance
When temperature and humidity levels reach preset thresholds, the system will automatically activate the sensor and trigger the relay alarm.Abnormal alarm can help you locate problems quickly, making your operation and maintenance easier.

Specifications:

• Downlink Ports: 16 * 10/100/1000Mbps RJ45 Ports

• Uplink Ports: 2 * 1000Mbps SFP Slots

• PoE Port: Port 1-16

• PoE Standard: Port 1-4: IEEE802.3 af/at/bt / Port 5-16: IEEE802.3 af/at

• PoE Pin Assignment 1/2(+), 3/6(–), 4/5(+), 7/8(–)

• PoE Power: 90W Max. for port 1-4 / 30W Max. for port 5-16 / 235W Max. for PoE power budget

• Flash Memory: 4 MB

• Forwarding Mode: Store and Forward

• Switching Capacity: 36Gbps

• Packet Forwarding Rate: 26.78Mpps

• MAC Address Table: 8K

• Packet Buffer Memory: 4.1Mbit

• Jumbo Frame: 10kB
