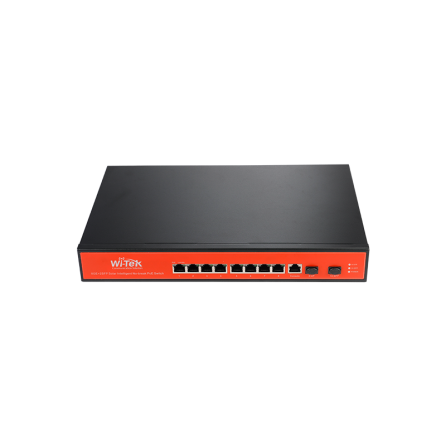

Wi-Tek WI-PMS310GF-UPS+ Switch (8) 1Gbe + 2 SFP PoE Layer 2

Renewable Energy

Solar Intelligent No-break PoE Switch

Interface Design

Port 1-8: Auto Detect 802.3af/at 48V and 24V Passive PoE

User-friendly and Secure Management

The administrator can remotly access the WI-PMS310GF-UPS+ to know the power of the battery and renewal ebergy.

Zero-Carbon and Stable Power Supply

The Wi-Tek Solar PoE Switch will keep powering PD devices via renewable solar energy. The IP-based survillance can be continued into the night as the battery is charged during the day.

Save Your Device from Crash

Schedule PoE Power, allows each of the connected wireless access point to reboot at a specific time each week. Therefore, it will reduce the AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

"PoE schedule" fuction can effectively control the power supply. It can help you to enable or disable PoE power feeding for each PoE port during specified time intervals. It also increase security by powering off PDs that should not be use during non-business hours.

Specifiactions:

• HARDWARE Version: V2

• Interface: 8 10/100/1000Mbps RJ45 Ports

       2 1000Mbps SFP Slots

       1 Console Port

• PoE Ports (RJ45):  Port 1-8: 802.3af/at PoE 1/2/4/5 (+), 3/6/7/8 (-)

• Passive 24V PoE 4/5(+), 7/8(-)

• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

• Fan Quantity: 2 Fans

• Power Consumption: 150W (max. with PoE device connected)

• Power Supply:  AC 110~240V  50/60HZ

• Power Priority: Solar Power - AC - Battery

• Solar Controller Input: 12/24V 500W Max

• Battery Type: Lead acid/lithium/lifepo4

• Battery Input: 12/24V 20A

• Exchange Capacity: 20Gbps

• Packet Forwarding Rate: 14.88Mpps

• Mac Address Table: 8k

• Packet Buffer Memory: 1.5Mb

• Jumbo Frame: 10240Bytes

• Protection Level:  6kV Lightning protection

6kV ESD Contact discharge

OTHERS

• Certification: CE, FCC, RoHS

• Package Dimension: 411×275×90 mm

• Switch Dimension: 330×215×45 mm

• Gross Weight: 2.68kg

• Net Weight: 2.3kg

• Package Contents: 1 x PoE Switch / 1 x Power Cord / 1 x Quick Installation Guide

• Working Temperature: -20℃～60℃

• Storage Temperature: -30℃～70℃

• Working Humidity: 10%～90% RH non-condensing

• Storage Humidity: 5%～90% RH non-condensing

SOFTWARE FEATURES

• Spanning Tree: IEEE 802.1D -STP, IEEE  802.1w -RSTP, IEEE  802.1s -MSTP

• VLAN: Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC-based VLAN, IP-based VLAN,  Protocol-based VLAN, Selective QinQ, 802.1q-based VLAN, Voice VLAN

• Port: LACP, Jumbo Frame, Port Shutdown, Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group), Port mirroring( One-to-One  Many-to-One Tx/Rx/Both)

• Security: IP-MAC-Port Binding, Support static and dynamic ARP, DHCP Snooping, IEEE802.1x AAA, RADIUS/TACACS+, RADIUS, Port Isolation, Port based authentication, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, Broadcast/Multicast/Unicast Storm Control, Port MAC address filtering,

• Access Control List: IP-MAC-Port Binding, Support static and dynamic ARP, DHCP Snooping, IEEE802.1x AAA, RADIUS/TACACS+, RADIUS, Port Isolation, Port based authentication, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, Broadcast/Multicast/Unicast Storm Control, Port MAC address filtering,

• QOS: Port-based (uplink and downlink traffic of a single port can be restricted), 802.1p-based Classification, Support WRR, SP, WFQ, DSCP-Based Classification, ACL-Based Classification

• L2 Multicast: Web-based GUI, Command Line Interface (CLI) through console port, telnet,SSH, SNMPv1/v2c/v3 Trap/Inform  RMON (1, 2, 3, 9 )groups, Password Recovery, SNTP, System Log, 802.1ab LLDP/LLDP-MED, UDLD, Traceroute, Ping, CPU Monitoring, Firmware upgrade,  Configuration export/import, Support SNTP based IPv4 and IPv6, DHCP/BOOTP Client
