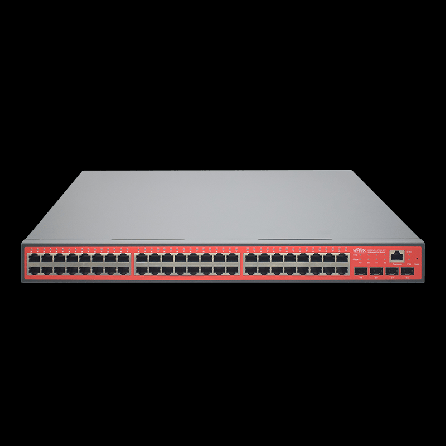

Wi-Tek WI-PMS552F Switch (48) Gb + (4) 10Gb Ports Layer 2 Managed PoE

Wi-Tek L2+ managed PoE Switch provide 48 Gigabit Ethernet RJ-45 ports and 4 10 Gigabit SFP+slots.

All RJ-45 ports comply with 802.3af/at PoE standard and output up to 30W PoE power perport.

Integrating L2 and L2+switch’s features, Wi-Tek L2+ managed PoE Switch are equipped with abundant functions such as VLAN, Port Loop Detection, STP/RSTP/MSTP, Link Aggregation, QoS, ACL, IGMP SNOOPING, IPv6 Management and Static Routing. Besides, Wi-Tek L2+ managed Switch can support diverse management methods such as Web Management, CLI and Telnet, which facilitates the maintenance and management. Based on these features, Wi-Tek L2+ managed Switch can build a scalable and stable network and provide efficient network solutions, which can be applied in the campus, hospitals and Small and medium enterprises.

High-Bandwidth Interface Design

Wi-Tek L2+ managed PoE Switch provide 4 10GB fibers, which can ensure smooth data delivery for high-bandwidth applications. Based on actual deployment needs, users can flexibly select 10G fiber or PoE copper. WI-PCMS552F can render network aggregation of large-sized enterprises, or core deployment of small to medium-sized networks

Abundant L2 and L2+ Features

Wi-Tek L2+ managed PoE Switch not only provides general L2 functions such as STP/RSTP/MSTP, Link aggregation, 802.1Q VLAN, IGMP Snooping, supports the L2+ function like Static routing which can help route internal traffic for more efficient use of network resources

Rich Security Policies

Wi-Tek L2+ managed PoE Switch can provide reliable security composed of IP-MAC Port Binding Port

Security and DHCP Snooping, which prevent the network from being attacked by the potential threats. In addition, Access Control Lists feature restrict network access by accurately identifying and controlling the packet based on source and destination MAC address, IP address, which can improve the security of network environment and reliability of network quality.

Advanced QoS

To integrate voice, data and video service on one network, the switch applies rich QoS policies.

Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear and smooth.

Specifications:

Interfaces

• Downlink Ports 48*10/100/1000Mbps RJ45 Ports

• Uplink Ports 4* 10 Gbps SFP+ Slots

• Management Port 1 Console port

Memory and Flash

• Memory: 4G DDR3

• Flash: 64MB

PoE

• PoE Port port 1-48: 802.3af/at

• PoE Standard 802.3af/at

• PoE Power Supply Type End-span

• PoE Pin Assignment 1/2(+), 3/6(-)

• PoE Power 30 W max. for each port, 780 W Max. (PoE power budget)

Standards and Protocols

• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af/at,

• IEEE 802.3ad, IEEE 802.3q, IEEE 802.3p, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Forwarding Mode Store and Forward

• Switching Capacity 176 Gbps

• Packet Forwarding Rate 130.7 Mpps

• MAC Address Table 32 k

• Packet Buffer Memory 4.1MB

• Jumbo Frame 16 kB

Power Supply

• lnput Power AC 100-240V, 50/60Hz
