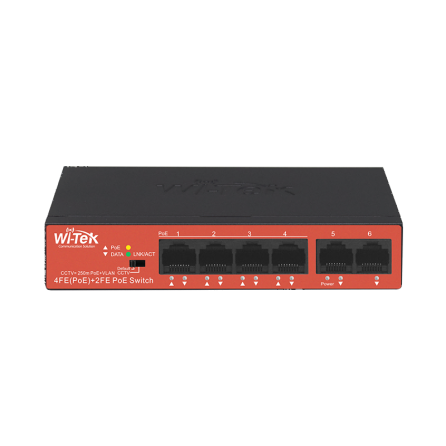

Wi-Tek WI-PS205H(V2) Switch (4) 100Mbps PoE (2) 10/100Mbps RJ45 Ports

Working Environment

Sturdy metal casing makes the PoE switch reliably in various environments. Powerful cooling feature and less noise o ensure stability.

One-key to Adjuste Modes

Default mode: the device works as a general switch an all ports support 10/100Mbps auto-negotation.

Specifications:

• Hardware Version: V2

• Interface:  4 10M/100Mbps RJ45 PoE Ports / 2 10/100Mbps RJ45 Ports

• Network Media: 10BASE-T: UTP category 3 , 4 , 5 cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5 , 5e cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m)

• Fan Quantity: Fanless

• Power Supply: AC 100~240V 50/60HZ

• Standard: 802.3 af/at/bt compliant PoE

• PoE Ports: Port 1-4

• PoE Power Budget: 65W

• Mac Address Table: 2k

• Packet Forwarding Rate: 0.8928Mpps

• Jumbo Frame: 2kB

• Protection Level: Lightning protection 6KV / 6KV ESD Contact discharge

• Package Dimension: 270×220×605 mm

• Switch Dimension: 190×130×35 mm

• Gross Weight: 1kg

• Net Weight: 0.6kg

• Transmission Method: Store - And - Forward

• Watchdog Function

• Mac Address Auto-Learning

• Auto-Aging Store and forward

• IEEE 802.3x flow control for Full-duplex Mode

• Backpressure for Half-duplex Mode

• Certification: CE , FCC , RoHS

• Operating Temperature: -10℃– 55℃ (14℉– 131℉)

• Storage Temperature: -40℃– 70℃ (-40℉– 158℉)

• Operating Humidity: 10– 90% RH non-condensing

• Storage Humidity: 5– 90%RH non-condensing
