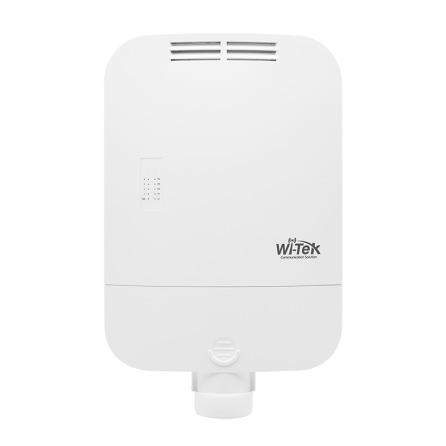

Wi-Tek WI-PS209-O Switch Outdoor (8) 10/100Mbps RJ45 802.3af/at PoE IP65

Wi-Tek Outdoor PoE Switch offers an “All in One" solution for installers and customers, streamlining the process by eliminating the need to order separate parts and assemble them. With IP65 weatherproof and 6kV surge protection, it ensures high-performance operation in harsh environments. The Wi-Tek

Outdoor Waterproof 802.3af/at PoE Switch Series is designed for outdoor applications like video surveillance and commercial Wi-Fi installations, providing reliable connectivity and durability in outdoor settings.

All in One

The outdoor PoE switch is generally more cost-effective than non-assembled switches because there's no need to cost each part of the switch separately.

IP65 Weatherproof Enclosure

Robust housing design, integrated top cover, PC/ABS high-quality material, extraordinary toughness, waterproof enclosure design, make sure the switch can be used in the bad weather.

PoE 250m Long Distance to Extend Network (WI-PS205-O WI-PS209-O)

DIP switch provides Extend Mode. All PoE ports can transmit data and power up to 250 meters. No further hardware or conf iguration is necessary, easy-to-use and cost-saving. Perfect for surveillance camera deployment in large areas.

Port Isolation to Prevent Broadcast Storm (WI-PS205-O WI-PS209-O)

With VLAN Mode, all PoE ports only can communicate with uplink ports. Avoid data leakage between each port and prevent broadcast storm from disabling network.

Specifications:

• 8 10/100Mbps RJ45 PoE Port

• 1 10/100Mbps Uplink Port

• PoE Port: 1-8

• PoE Power: 30W Max. for each port, 116 W Max. for PoE power budget

Standards and Protocols

• IEEE 802.3 (Ethernet)

• IEEE 802.3u (Fast Ethernet)

• IEEE 802.3af (Power over Ethernet)

• IEEE 802.3at (Power over Ethernet Plus)

• Switching Capacity: 1.8 Gbps

• Packet Forwarding Rate: 1.34 Mpps

• lnput Power: 100-240V AC 50/60Hz Input
