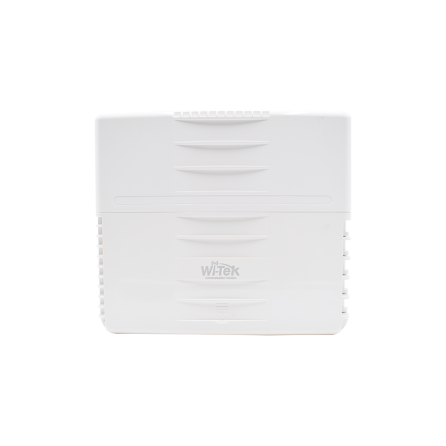

Wi-Tek WI-PS210G-O Switch PoE Outdoor 8 GE + 2 SFP 24V Ports

Outdoor Waterproof PoE Switch

Specifications:

• Hardware Version:  V2

• Interface: 6 10/100Mbps RJ45 PoE Ports / 2 100/1000Mbps RJ45 PoE Ports / 2 100/1000Mbps Uplink Ports / 1 100/1000Mbps SFP Slot

• PoE Ports: Port 1-6: 802.3af/at / Port 7- 8: 802.3 bt 60W

• Network Media: 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) / 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) / 1000BASE-TX: 6 Category and above UTP(≤150m)

• Power Supply: AC 110~240V 50/60HZ

• Power Budget: 120W

• Exchange Capacity: 11.2Gbps

• Packet Forwarding Rate: 8.33Mpps

• Mac Address Table: 4k

• Protection: 6kV PoE Surge Protection / 10kV AC Surge Protection

• Jumbo Frame; 10240Bytes

SOFTWARE FEATURES

• Advanced Functions: Mac Address Auto-Learning And Auto-Aging / Store and forward / IEEE 802.3x flow control for Full-duplex Mode / Backpressure for Half-duplex Mode

OTHERS

• Certification: CE, FCC, RoHS

• Package Dimension:  340×315×120 mm

• Switch Dimension: 350×255×90 mm

• Gross Weight: 1.95kg

• Net Weight: 1.4kg

• Package Contents: 1 × PoE Switch / 1 × Power cord / 1 × Quick Installation Guide / 1 × Wall mounting KIT / 1 × Pole mounting KIT / 6 × Screws

ENVIRONMENT:

• Working Temperature: -30℃ ~70℃(22℉~158 ℉)

• Storage Temperature: -40℃~70 ℃ (-40~158 ℉)

• Operating Humidity: 10~90% RH non-condensing

• Storage Humidity: 5~90% RH non-condensing
