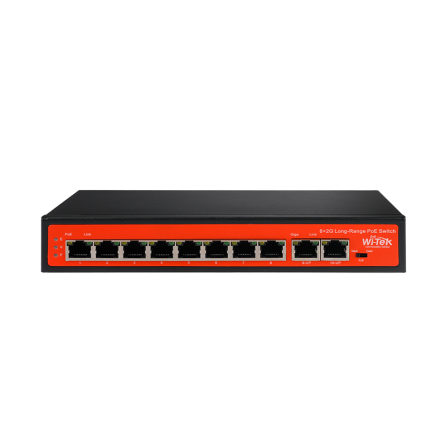

Wi-Tek WI-PS210G Switch PoE 8 x 10/100Mbps PoE Ports 2 x 100/1000Mbps Uplink

Build and expand your network up to 250 meters, allow you to deploy a personalized survillance system.

Working Environmet

Sturdy metal casing makes the PoE switch reliably in various environments. Powerful cooling feature and less noise to ensure stability.

Specifications:

• Hardware Version: V2

• Interface: 8 10/100M RJ45 PoE Ports / 2 100/ 1000Mbps RJ45 Ports

• Network Media: 10BASE-T: UTP category 3 , 4 , 5 cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5 , 5e cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m)

• Fan Quantity: Fanless

• Power Supply: AC 100~240V 50/60HZ

• Standard: 802.3 af/at/bt compliant PoE

• PoE Ports: Port 1-8

• PoE Power Budget: 120W

• Mac Address Table: 2k

• Packet Forwarding Rate: 1.488Mpps

• Jumbo Frame: 16kB

• Protection Level: Lightning protection 6KkV / 6kV ESD Contact discharge

• Package Dimension: 270×220×65 mm

• Switch Dimension: 210×150×35 mm

• Gross Weight: 1.2kg

• Net Weight: 0.75kg

• Certification: CE , FCC , RoHS

• Environment: Operating Temperature: -10℃– 55℃ (14℉– 131℉)

• Storage Temperature: -40℃– 70℃ (-40℉– 158℉)

• Operating Humidity: 10– 90% RH non-condensing

• Storage Humidity: 5– 90%RH non-condensing

Software Features:

• Transmission Method: Store - And - Forward

• Advanced Functions:

• Watchdog Function

• Mac Address Auto-Learning

• Auto-Aging Store and forward

• IEEE 802.3x flow control for Full-duplex Mode

• Backpressure for Half-duplex Mode
