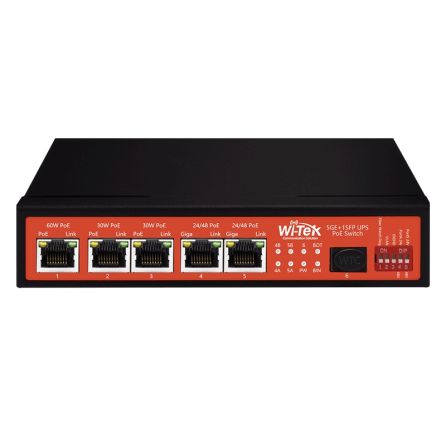

Wi-Tek WI-PS306GF-UPS-15A Switch 5 GB. + 1 SFP Port PoE UPS

Renewable Energy Solar No-break PoE Switch

WI-PS306GF-UPS-15A is proected by high-quality metal shell to ensure the long service life. They have passed a series of strict test and provide you with reliable performance

Long Product Life with Durable Casing

WI-PS306GF-UPS-15A is protected by high-quality metal shell to ensure the long service life. They have passed a serie of strict tests and provided you with reliable performance.

Specifications:

• HARDWARE Version: V1

• Interface: 5 10/100/1000Mbps RJ45 Ports / 1 1000Mbps SFP Slots

• PoE Ports (RJ45): Port 1: 802.3bt PoE 60W 1/2/4/5 (+), 3/6/7/8 (-) / Port 2-3: 802.3af/at PoE 1/2(+), 3/6(-) / Port 4-5: 802.3af/at PoE 1/2(+), 3/6(-) or Passive 24V PoE 24W 4/5(+), 7/8(-)

• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) / 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) / 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

• Fan Quantity: Fanless

• Power Consumption: 120W (max. with PoE device connected) / 5W Max (without PoE output)

• Power Supply: For 12V Battery: DC 15-32V / For 24V Battery: DC 30-57V

• Power Priority: Solar Power - DC - Battery

• Solar Controller Input;  ≤32V(12V standard) / ≤45V(24V standard)  300W Max

• Battery Type: Lead acid/lithium

• Battery Input: 12/24V 15A

• Exchange Capacity; 12Gbps

• Packet Forwarding Rate: 8.94Mpps

• Mac Address Table: 2k

• Packet Buffer Memory: 2.4Mb

• Jumbo Frame: 10240 Bytes

• Protection Level: 6kV Lightning protection / 6kV ESD Contact discharge

• Certification: CE, FCC, RoHS

• Package Dimension: 270×220×67 mm

• Switch Dimension: 160×130×34 mm

• Gross Weight: 1.56kg

• Net Weight: 0.73kg

• Package Contents

• 1 x PoE Switch

• 1 x 24V 5A Power Adapter

• 1 x Power Cord

• 1 x Quick Installation Guide

• Working Temperature: -20℃～60℃

• Storage Temperature: -30℃～70℃

• Working Humidity: 10%～90% RH non-condensing

• Storage Humidity: 5%～90% RH non-condensing
