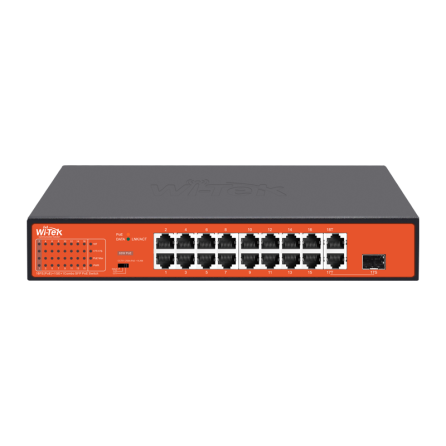

Wi-Tek WI-PS518G(V4) Switch (16) 10/100Mbps PoE Ports

Wi-Tek Long-Distance PoE Switch provide 4/8/16/24/48 10/100 Mbps PoE RJ-45 ports, which can meet flexibly the demand of different PoE Input in different application scenarios. In addition, Wi-Tek Long-Distance PoE Switch can extend the data transmission distance to 250m, breaking the distance limit and improving the device availability. At the same time, Wi-Tek Long-Distance PoE Switch provide valuable features such as extend mode, PoE Watchdog, Port insolation, creating reliable network to grow your business.

Specifications:

• Hardware Version: V3

• Interface: 16 10/100Mbps RJ45 PoE Ports / 1 Gigabit  RJ45 Port / 1 Gigabit Combo Port

• Network Media: 10BASE-T: UTP category 3 , 4 , 5 cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5 , 5e cable (maximum 100m) / EIA/TIA- 568 100Ω STP (maximum 100m)

• Fan Quantity: 2 Fans

• Power Supply: AC 100~240V 50/60HZ

• Standard: 802.3 af/at/bt compliant PoE

• PoE Ports: Port 1- 16

• PoE Power Budget: 200W

• Mac Address Table: 8k

• Packet Forwarding Rate: 2.827Mpps

• Jumbo Frame: 10kB

• Protection Level: Lightning protection 6kV / 6kV ESD Contact discharge

• Package Dimension: 405×275×95 mm

• Switch Dimension: 295×193×45 mm

• Gross Weight: 2.5kg

• Net Weight: 1.75kg

• Transmission Method: Store - And - Forward

• Watchdog Function

• Mac Address Auto-Learning

• Auto-Aging Store and forward

• IEEE 802.3x flow control for Full-duplex Mode

• Backpressure for Half-duplex Mode

• Certification: CE , FCC , RoHS

• Operating Temperature: -10℃– 55℃ (14℉– 131℉)

• Storage Temperature: -40℃– 70℃ (-40℉– 158℉)

• Operating Humidity: 10– 90% RH non-condensing

• Storage Humidity: 5– 90%RH non-condensing

Package Content

• 1 × Switch

• 1 × Power cord

• 1 × Rackmount Kit

• 1 × Quick Installation Guide
