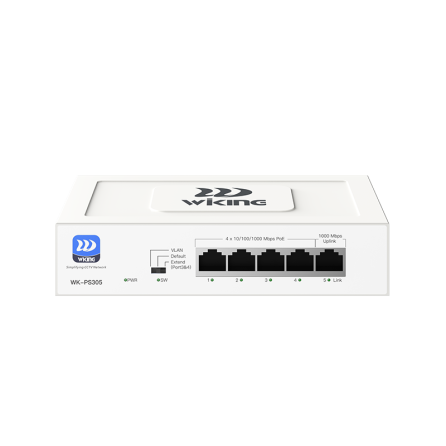

Wi-Tek WK-PS305 Switch (4) 1GbE RJ45 PoE (1) GbE Uplink Ports

• 4 x 10/100/1000Mbps PoE Ports, 1 x 10/100/1000Mbps RJ45 Uplink Ports

• Support 250m Extend, Port VLAN, and PD Alive function on DIP Switch

• PD Alive mode detects and reboots unresponsive PoE-powered devices automatically

• Metal housing, fanless design, create a quiet environment

• Plug and play with no configuration required

1000Mbps PoE series switch offers 4/8 1000Mbps PoE ports and 1/2 Uplink Ethernet ports, which provides an affordable PoE solution, empowering your CCTV, and other lP-based devices up to 250m away, to break free from traditional PoE distance limitations. Support for enabling VLAN, Extend, and PD Alive functions through smart DlP switches provides much value to basic networking requirements. You
are creating a multi-functional and reliable CCTV network solution.

PoE 250m Long Distance to Extend Network
DIP switch provides Extend mode. PoE ports can transmit data and power up to 250 meters. No further hardware or configuration is necessary, easy-to-use, and cost-saving. Perfect for surveillance camera deployment in large areas.

Smart PoE Watchdog to Detcect and Reboot Offline PD Device
All PoE ports enable PD Alive function, which can detect and reboot the offline compliant PoE powered devices.

Port Isolation to Prevent Broadcast Storm
With VLAN mode, all PoE ports only can communicate with uplink ports. Avoid data leakage between each port and prevent broadcast storms from disabling the network.

Fanless Design
Fanless design, to provide you with a quiet working environment, suitable for office, hotel and other application scenarios.

Specifications

• Downlink Ports: 4*10/100/1000Mbps Downlink Ports RJ45 PoE Ports

• Uplink Ports: 1*100/1000Mbps RJ45 Port

• PoE: Port 1-4: AF/AT MCU PSE 30W

• PoE Output: 30W

• PoE Pin Assignment: 1/2(+), 3/6(-)

• PoE Power Budget: 45W

• Standards and Protocols: IEEE 802.3,

                                                         IEEE 802.3u,

                                                         IEEE 802.3x,

                                                         IEEE 802.3ab，

                                                         Compatible with IEEE 802.3af,

                                                         Compatible with IEEE 802.3at.

• Switching Capacity: 10Gbps

• Packet Forwarding Rate: 7.44Mpps
