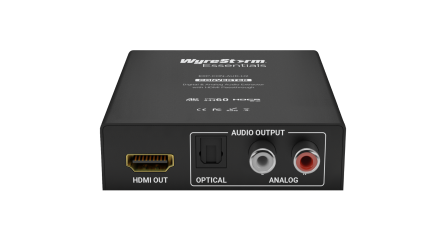

WyreStorm EXP-CON-AUD-H2 Essentials™ HDMI Audio Extractor

AUDIO DE-EMBED

This is the bread and butter feature of the EXP-CON-AUD-H2. Perfect for de-embedding digital 5.1 surround or 2 channel analog from anywhere inline or from sources that aren’t equipped with a native audio breakout, such as Apple TV 4K, all-while passing video content to a matrix switch or display.

AUDIO EDID SELECTION

When multiple audio formats are needed in a system, the EXP-CON-AUD-H2 gives the user 3 audio EDID options to choose from; 5.1 surround, 2 channel analog or passthrough. This is perfect if multiple audio amplifiers or AVRs are in the system, allowing each audio system to receive a discrete EDID without affecting the source.

Wyrestorm Converter & Adapter EXP-CON-AUD-H2 (8)

HDMI 2.0 MAXED OUT

Sporting an 18Gbps HDMI input, the EXP-CON-AUD-H2 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz.

COMPLIANT WITH HDCP 2.2

All of our 4K UHD extenders are compliant with the strict anti-piracy algorithms that prevent the unauthorized distribution of content, meaning a trouble-free installation.

Specifications:

AUDIO AND VIDEO

Inputs 1x HDMI in: 19-pin type A

Outputs 1x HDMI Out: 19-pin type A1x RCA Female Stereo (L/R)1x S/PDIF TOSLINK

Audio Formats HDMI: 2ch PCM | Multichannel: LPCM and up to DTS-X and Dolby Atmos

Analog: 2ch LPCM

Toslink: 5.1ch surround sound

Video Resolutions (Max) Video Resolutions

1920x1080p @60Hz 12bit

1920x1080p @60Hz 16bit

3840x2160p @24Hz 10bit 4:2:0 HDR

3840x2160p @30Hz 8bit 4:4:4

3840x2160p @60Hz 10bit 4:2:0 HDR

4096x2160p @60Hz 8bit 4:2:0

4096x2160p @60Hz 8bit 4:4:4 HDMI

15m/49ft

7m/23ft

7m/23ft

5m/16ft

5m/16ft

5m/16ft

3m/10ft

Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision (Pass-Through EDID only) | HLG | BT.2020 | BT.2100

Maximum Pixel Clock 600MHz

COMMUNICATION AND CONTROL

HDMI HDCP 2.2 | DVI-D supported with adaptor (not included)

POWER

Power Supply 5V DC 1A

Max Power Consumption 2.88W

ENVIRONMENTAL

Operating Temperature 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing

StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing

Maximum BTU 9.83 BTU/hr

DIMENSIONS & WEIGHT

Rack Units/Wall Box <1U

Height 22mm/0.87in

Width 80mm/3.15in

Depth 90mm/3.54in

Weight 0.23kg/.51lbs

REGULATORY

Safety and Emission CE | FCC | RoHS
