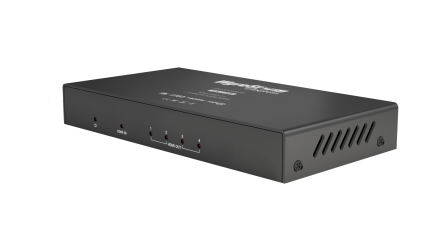

WyreStorm EXP-SP-0102-H2 Splitter 4K HDR 4:4:4 60Hz HDMI 1x2 with 1080p

SCALING FROM 4K TO 1080P
With the EXP-SP-0102-H2, the user doesn’t have to give up 4K content when mixed resolution displays are present, as each output is capable of downscaling from 4K to 1080p without affecting the source!

PLUG AND PLAY
WyreStorm’s variety of essential’s splitters offers lossless duplication and distribution of a single HDMI UHD or HD source to multiple outputs for a flexible and reliable solution supporting resolutions up to 4K. EDID and HDCP device communication are automatically negotiated, truly making a plug-and-play device.

HDMI 2.0 VIDEO: MAXED OUT!
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be split with the 0104-H2. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful device.

SLIM BY DESIGN
All of WyreStorm’s Essential’s splitters showcase a low profile, ultra slim chassis for greater installation convenience without giving up strength and quality. This allows the device to be installed under a table or desk for neat, discreet integration.

Specifications:
AUDIO & VIDEO

• Inputs: 1x HDMI In 19-pin HDMI type A

• Outputs: 2x HDMI Out 19-pin HDMI type A

Audio Formats

• 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

• Video Resolution (Max): 1920x1080p @60Hz 12bit

                                                      1920x1080p @60Hz 16bit

                                                      3840x2160p @24Hz 10bit 4:2:0 HDR

                                                      3940x2160p @30Hz 8bit 4:4:4

                                                      3840x2160p @60Hz 10bit 4:2:0 HDR

                                                      4096x2160p @60Hz 8bit 4:2:0

                                                      4096x2160p @60Hz 8bit 4:4:4

• Supported Standards; DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020

• Maximum Pixel Clock; 600Mhz

COMMUNICATION & CONTROL

• HDMI; HDCP 2.2 | EDID | DVI-D supported with adapter (not included)

POWER

• Power Supply; 5V DC 1A

• Max Power Consumption: 1.8W

Additional Features

• Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel or digital projector

• Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020

• Fully HDCP 2.2 compliant

• Data rates up to 18Gbps

• HDR and Dolby Vision support

• Each HDMI output supports scaling down to 1080p

• Automatic input cable equalization for signal regeneration

• DTS-X and Dolby Atmos™ supported

• Plug and play set up for easy installation – no set up/drivers/software required

• Compact, durable design for unobtrusive installation
