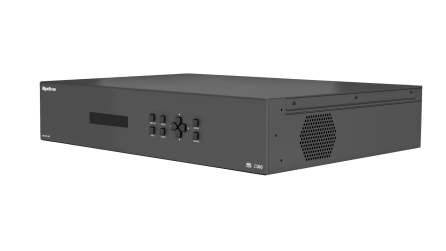

WyreStorm MX-1007-HYB Advanced 10×7 Seamless Matrix Switch USB-C, HDMI, HDBT, Dante Audio, NetworkHD Connectivity

The MX-1007-HYB is the next generation of matrix switchers. Featuring seamless 4K60Hz switching for crystal-clear visuals and uninterrupted enjoyment. Simplify your setup with HDBT™ technology, offering long-distance audio and video transmission over a single cable for a clutter-free environment. Embrace scalability with NetworkHD 500, and elevate your audio with integrated Dante technology and a 100- Watt Amplifier with DSP, ensuring a powerful, immersive auditory experience. Streamline and enhance your audiovisual experience in any space.

4K60Hz SEAMLESS SWITCHING

Effortless and seamless switching for crystal-clear visuals and high-resolution content.

Enhanced viewing experience with stunning detail and clarity for presentations, lectures, and entertainment,

without any interruptions during source transitions.

HDBT™ IN/OUT

Long-distance transmission of audio and video signals over a single cable.

Simplified installation, reduced cable clutter, and increased flexibility in setting up displays and sources.

NETWORKHD 500 IN/OUT

Transmit audio and video signals over an 1g network for scalable and flexible distribution. Effortless integration into larger AV systems, supporting the delivery of high-quality content to multiple displays over existing network infrastructure, ideal for high end educational or corporate environments.

BUILT-IN POWER AMPLIFIER FOR DIRECT SPEAKER DRIVE

The matrix features a built-in power amplifier capable of directly driving a pair of stereo speakers (25 Watts per channel @ 4Ω or 8Ω). Streamlined audio setup with the ability to power stereo speakers directly from the matrix. The internal amplifier synergizes seamlessly with the onboard DSP, ensuring optimal audio quality for a rich and immersive auditory experience.

Multi-format video connections include USB-C, HDMI, HDBaseT and NetworkHD (500 Series) NetworkHD input and output supports spill-over applications

Fast up to 1 second switching across all video outputs

480p to 2160p built-in scaling video outputs

USB-C input supports 4K60 video, USB3.0/USB2.0, 1G network, and PD3.0 USB host charging up to 60watts

All HDBaseT outputs support HDBaseT 3.0 specification, which includes uncompressed A/V, RS-232, USB2.0 up to 300Mbps and PoE+ PSE transmission

NetworkHD input and output supports a 4K60 scaler, and seamless switching of A/V, USB2.0 and RS-232 control signals up to 330ft/100m over a single CAT6a cable, or longer via 1G network switch

Supports USB host switching and device extension

Switching USB hosts include 1x USB-C port, 2x local USB3.0 USB-B ports, 1x NHD input, 1x HDBT input related USB connection

USB devices include 4x local USB3.0 USB-A ports, 1x NHD output, 2x HDBT outputs related USB connections

Supports 2x MIC inputs, 1x LINE input, Dante 4×4 optional and 2x 5-pin balanced audio outputs

4-channel 4/8ohm amplified speaker outputs

GPIO and Relay support for automation of screens, occupancy sensors etc

Three separate audio mixers for analog, digital, and video de-embed

HDCP 2.3 compliant and backward compatible for secure content transmission

Supports HDR formats including HDR10, HDR10+, HLG, and Dolby Vision Low Latency

EDID management for efficient control and customization of connected displays

Specifications:

Technical Specifications

• AUDIO & VIDEO

Inputs

1x USB-C In with Alt-Mode

7x HDMI In: 19-pin type A

1x HDBT 3.0 In: RJ-45 Female

1x NetworkHD 500 In: RJ-45 Female

2x USB-B Host

• Outputs

4x HDMI Out: 19-pin type A

2x HDBT 3.0 Out: RJ-45 Female

1x NetworkHD 500 Out: RJ-45 Female

4x USB-A Device

4x GPIO Phoenix Port

2x Relay Phoenix Port

• Output Video Encoding: HDBaseT | JPEG 2000

• Encoding Data Rate: 18Gbps

• Audio Formats: PCM 2ch Analog | Dante 4×4

• Video Resolution (Max)

1920x1080p @60Hz

3840x2160p @60Hz 4:2:0

3840×2160 @60Hz 4:4:4

• Maximum Pixel Clock: 600MHz

COMMUNICATION & CONTROL

• HDMI: HDMI 2.0 | HDCP 2.3 | EDID | CEC

• HDBaseT: HDMI 2.0 | HDCP 2.3 | EDID | USB 2.0 | CEC | RS-232 | 1-way PoH

• NetworkHD: HDMI 2.0 | HDCP 2.3 | EDID | USB2.0 | RS-232

• Dante Ultimo 4×4

1 x 1GbE RJ-45

1x RS-232: 3-pin Phoenix Female | Matrix Control

Routable RS-232 Device Control | Telnet commands supported

• RS-232

1x RS-232: 3-pin Phoenix Female | Matrix Control

Routable RS-232 Device Control | Telnet commands supported

• Ethernet: 2x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control and Ethernet

• Power Supply: 100~240V AC 50/60Hz

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

• Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

• Rack Units/Wall Box: 2U

• Height: 88mm/3.46in

• Width: 440mm/17.33in

• Depth: 362mm/14.25in

• Supported Standards: DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020
