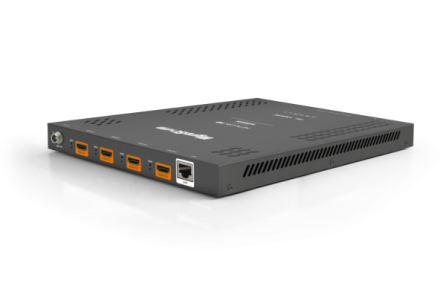

WyreStorm NHD-124-TX NetworkHD™ 100 Series Encoder Quad 4K AV over IP

The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.

The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.

TAILORED FOR MULTIPLE MARKETS

The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.

LOW BANDWIDTH ENCODING

The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.

SPACE SAVING DEVICE

Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.

4K RESOLUTION

The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.

AES ENCRYPTION

Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.

Supports up to 4K @ 30Hz video content

Flexible encoding using low bandwidth technology. Encoding is configurable between a constant bitrate or variable bitrate.

Low bandwidth or high-quality transmission methods. Low latency ~ 150ms. High-quality ~400ms

Seamless video switching – no black screens or freeze frames

Support all SD and HD formats – including interlaced content

Compatible with NHD-150-RX Multiview receiver

Live video preview streams for use with NetworkHD Touch or a custom control UI

Flexible IP address settings: AutoIP/Static/DHCP

Batch firmware update and batch settings functions offers a massive reduction on installation time

Custom EDID management

HDCP 2.2 compliant

Supports AES-128 for audio/video decryption.

Supports HTTPS/SSH/LDAP/802.1X.

IEEE 802.3af PoE compliant PD

Specifications

• Inputs: 4x HDMI Type A

• Outputs: 1x 8-pin RJ-45 female

• End to End Latency: 1080p: High Quality Mode: ~250ms

    Low Latency Mode: ~80ms

    4K: High Quality Mode: ~400ms

    Low Latency Mode: ~150ms

• Audio Formats: LPCM/MPEG4 AAC stereo, 48KHz

• Video Resolution (Max): 3840x2160p @ 30Hz / 1920x1080p @ 60Hz

• Maximum Pixel Clock: 297MHz

• HDMI: HDMI 1.4 | HDCP 2.2 | EDID

• LAN: 1x 8-pin RJ-45 female | 10/100Base-T | PoE 802.1af

• Security Protocols: AES 128 | SSH | TLS | HTTPS

• Power Supply: 12V DC 1A | 802.3af PoE Compliant

• Max Power Consumption: 3.6W (DC adapter)
