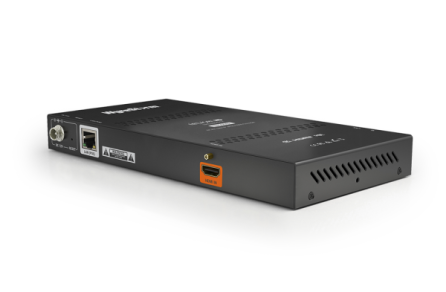

WyreStorm NHD-400-E-RX NetworkHD™ 400 Series Enconder 4K AV over IP JPEG 2000

The NHD-400-E-TX encoder offers stunning 4K HDR video, multichannel audio support and 4K/2K scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications.

The NHD-400-E-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold seperately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-000-CTL system controller complete control integration is quick and simple.

4K UHD AND HDR SUPPORT

Delivering visually lossless 4K UHD content with HDR and HDCP 2.2 support ensures compatibility with the latest UHD video sources, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

CUSTOM VIDEO WALL STYLES

Supporting traditional video walls, as well as customizable mosaic styles, perfect for building captivating & creative digital signage. JPEG2000 encoding ensuring distribution integrity and video latency of less than a single frame makes the 400 Series ideal for live environments.

POWERFUL VIDEO PROCESSING

Dynamic video processing seamlessly converts and matches source video content from each decoder to connected displays, removing video resolution and timing incompatibilities that might otherwise exist for reliable and easily manageable multi-display systems.

POWERFUL ROUTING ENGINE

The 400 Series boasts discrete audio stream routing, ensuring true signal breakaway can maximize system flexibility. CEC and RS-232 display control signals can also be generated at the 400 Series decoder, removing the requirement for external equipment.

START USING SYGMA TODAY!

Sygma Cloud Device Management is an advanced online platform that empowers users to effortlessly monitor their devices from anywhere in the world. With a comprehensive suite of features, it enables seamless device control, firmware updates, and access to online support, all in one centralized location.

Uses security protocols such as SSH, HTTPS and AES to encrypt data and prevent unauthorized access

Stunning visually lossless 4K UHD HDMI video with HDR over 1GbE / IP networks

Ultra-low end-to-end latency – only a single video frame (16ms at 60fps)

Multi-channel audio including DTS:X & Dolby ATMOS supported over HDMI

Image scaling with 400 Series decoders – use a mix of 4K & 1080p displays throughout an installation

Easy network set-up using standard Layer 2 or Layer 3 managed switches

Hugely scalable I/O, utilizing multicast technology

Live video unicast preview streams for use with NetworkHD Touch or a custom control UI

Powerful audio matrix functionality – route audio separately from video to any decoder

400 Series supports up to 16×16 video walls with image scaling, bezel compensation and rotation

400 Series supports custom “No Source” idle image upload for branded down time

Support all SD, HD and UHD video formats – including interlaced content

Batch firmware update and batch settings functions offers a massive reduction on installation times

Custom EDID management with import/export

HDCP 2.2 Compliant

IEEE 802.3af PoE compliant PD

Compatible with NHD-000-RACK4 rack mounting kit (brackets included with encoder)

Specifiations:

AUDIO AND VIDEO

• Inputs: 1x 19-pin HDMI Type A

• Outputs: 1x 8-pin RJ-45

• Audio Formats: 2ch LPCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

• Output Video Encoding: JPEG 2000

• Encoding Data Rate Max: 850Mbps

• End to End Latency (Max): 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps

• Video Resolutions (Max): 3840x2160p @60Hz 8bit 4:2:0

• Supported Standards: HDR10 | HLG | BT.2020

• Maximum Pixel Clock: 300MHz

• COMMUNICATION AND CONTROL

• HDMI: HDCP 2.2 | CEC

• Ethernet:1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)

• RS-232: 1x RS-232: 4-pin Phoenix | 2 Way (RX only) | Routed | API Programmable

POWER

• Power Supply: 12V DC 1A

• PoE:IEEE 802.3af (15.4W at PSE)

• Max Power Consumption: 8W (with PSU)
