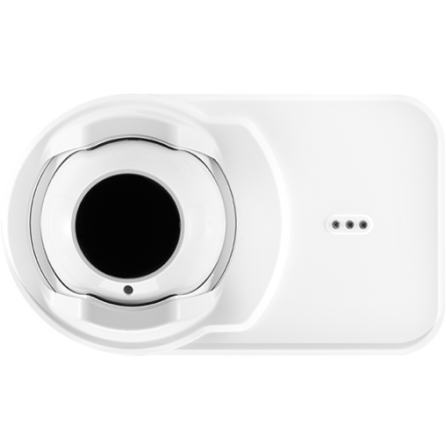

Xtralis OSID-R (Reflective) Smoke Beam Detector

OSID-R is the latest addition to the OSID open area smoke detection range utilizing the latest CMOS imaging technology to deliver rapid and trouble free detection with a lower total cost of ownership; ideal for protecting buildings with large open spaces. The CMOS technology allows the detector to find and lock onto a standard reflector, automatically set the detector sensitivity, track the reflector, resulting in the eliminattion of nuisance alarms due to building movement. The OSID-R detector is a combined transmitter/receiver unit that can be directly connected to a conventional FACP or to an addressable/intelligent FACP using zone modules or IO units.

Specifications:

• Combined transmitter and receiver unit, range 5-100 m (16-328 ft)

• Highly resistant to reflections

• Receiver consists of a CMOS imaging CCD

• Wide 12° field of view

• Intuitive beam alignment indicated by directional arrows

• Single IR wavelength

• Highly resistant to building movement; tolerates +/- 1° movement

• Resistant to strong light sources up to +/-10°; does not alarm when saturated by sun

• Resistant to sudden solid intruding objects

• Automatic sensitivity threshold level setting

• 50° horizontal and 20° vertical beam alignment

• Built-in heater

• Electronic simulated smoke test from ground level

• Standby, fault and alarm LED indicators visible from the front and bottom

• Automatic drift compensation

• Paintable cover

• Removable plug-in terminal blocks

• Optional heater kit available for the reflector
