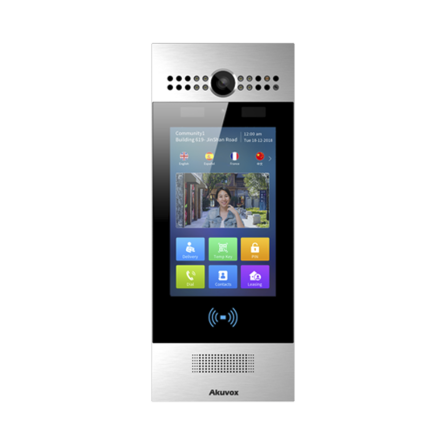

Akuvox R29C IP Doorphone 7" Touch Screen Android Facial Recognition SIP IP65 PoE

World's First Facial Recognition Android Doorphone

Akuvox R29 is a SIP video doorphone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes.

Specifications:

• Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises

• Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries

• Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%

• Allows both audio and video communication to an IP phone, mobile client, or softphone

• Enables the ability to remotely control the door/gate

• Presents information and user navigation options unique to your business

• Speeds response time to visitors, delivery and service personnel that require access

Physical & Power

• Front panel: Aluminum

• RAM / ROM: 2GB / 16GB

• Display: 7 Inch IPS LCD

• Screen: 7 Inch capacitive touch screen

• Main Camera: 2M pixels, automatic lighting

• Auxiliary Camera: 1M pixels

• Light sensor: Support

• Infrared sensor: Support

• Wiegand port: Support

• RS485 port: Support

• RF card reader: 13.56MHz & 125kHz

• Relays ln/out: 3/3

• Microphone: 1

• Speaker: 1

• Bluetooth: Support

• Ethernet port: RJ45, 10/100Mbps adaptive

• 802.3at Power-over-Ethernet

• IP/IK Level: IP65/ IK06

• Installation: Flush-mounted & Wall-mounted

• Flush-mounted DIM: 324x130x60mm

• Wall-mounted DIM: 324x130x33mm

• Working Humidity: 10-90%

• Working Temperature: -20°C - +55°C

• Storage Temperature: -40°C - +70°C

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)

• Narrowband audio codec: G.711a, G.711μ

• Wideband audio codec: G.722

• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

• Echo Cancellation

• Voice Activation Detection

• Comfort Noise Generator

Video

• Sensor: 1/2.8", CMOS

• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

• Video codec: H.264

• Video resolution: up to 1920x1080

• Max. image transfer rate: 1080p - 25fps

• Viewing angle: 105(H)/55°(V)

• High intensity IR LEDs for picture lighting during dark hours with internal light sensor

• White LEDs for QR code scanning

• Compatible to 3rd-party video components

Networking and Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

• Android OS for any 3rd-party software or customization

• Relays controlled individually by DTMF tones

• Multi-way Unlock: Face, IC/ID Card, PIN and BLE

• Camera permanently operational

• Auto-night mode with LED illumination

• White balance: auto

• Minimum illumination: 0.1LUX

Deployment & Maintenance

• Auto-Provisioning

• Web management portal

• Web-based packet dump

• Configuration backup / restore

• Entry log export

• Access table export / import

• Firmware upgrade

• System logs (include door access logs)

Application Scenario

• Office door phone with on-site or hosted IP-PBX

• Remote site entry over Internet

• Apartment/flat intercom with door access control

• Business information or a welcome experience for guests
